The cashew nut processing machine is mainly used to process cashew nuts from raw cashew nuts to peeled and roasted cashew nuts.According to the different output of cashew nut processing machines, it can divide into small cashew nut production line and fully automatic cashew processing plant.Although the two lines’ production efficiency is different, but they both have have a higher integrity rate, and the cashews will not damage. It can meet different customers’ needs to process cashew nuts.
Table of Contents
Cashew nut processing plant operation video
Small cashew nut processing line
The small cashew nut shelling line is mainly composed of semi-automatic cashew nut machines. Its production steps are mainly cleaning, analysis, cooking, peeling, separating the shell and kernel, and roasting cashew nuts. The following is a 200kg/h cashew nut production line to illustrate the production steps and machines required for cashew nut processing.
200kg/h small cashew nut shelling machine list and parameter
|1||Cashew cleaning machine||500kg/h||1.58*0.85*0.8m||1.1kw||180kg|
|2||Cashew nut grading machine||500kg/h||3.6*0.9*1.6m||1.1kw||450kg|
|3||Cashew cooking machine||200kg/h||1.5*0.6*1.55m||18kw||150kg|
|4||Cashew nut shelling machine||240kg/h||1.45*1.33*1.55m||3kw||700kg|
|5||Shell kernel separator||400kg/h||1.25*0.85*1.85m||2.2kw||320kg|
|6||Cashew kernel peeling machine||200kg/h||0.71*0.69*1.38m||0.1kw||110kg|
|7||Cashew nut roaster||200kg/h||3*2.2*1.7m||2.2kw||500kg|
Small cashew nut processing machine flow chart
Small cashew nut processing equipment mainly includes cashew cleaning machine, grading machine, cooking machine, peeling machine, shell and kernel separator, peeling machine, roasting machine.

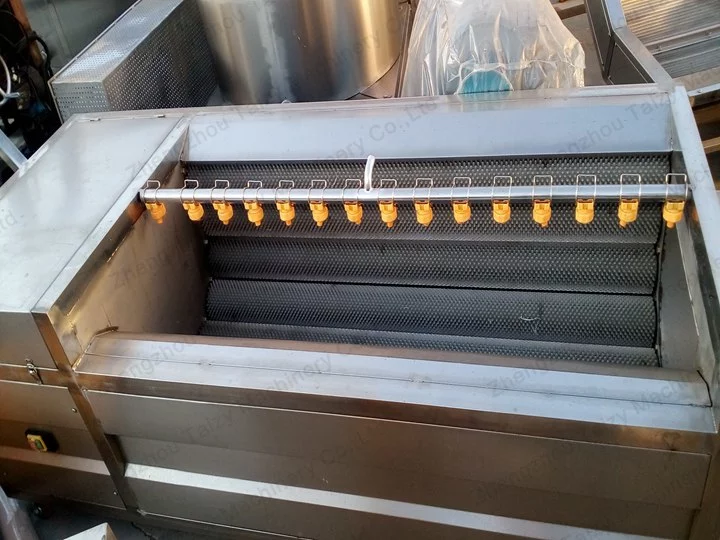

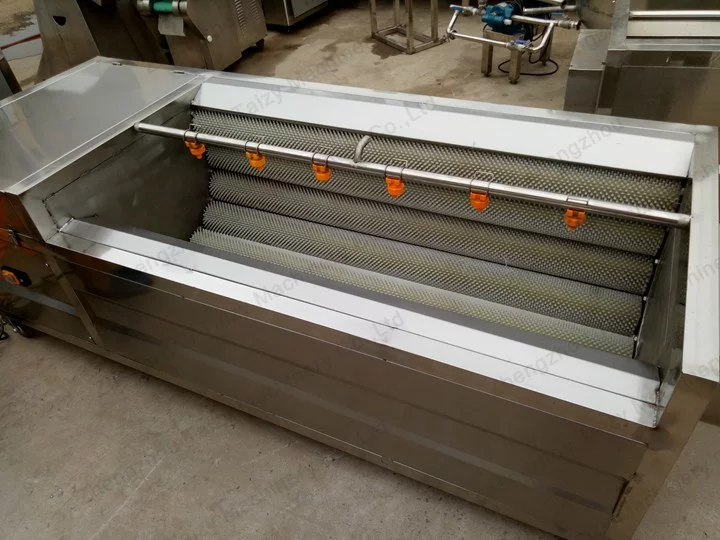

cashew nut cleaning machine
The cashew nut cleaning machine is a brush cleaning machine that can remove impurities on the surface of the cashew nut. There are 9 brushes evenly distributed inside the machine, and the brushes are in full contact with the cashew nuts. Therefore, the machine can completely remove impurities on the surface of the cashew nuts. The machine is made of all 304 stainless steel, and it has movable casters for easy movement.
A grading machine can be used to grade cashews before they are shelled. Different grades of cashews have slightly different prices. In this step, it can distinguish different grades’ cashew nuts to facilitate subsequent processing. The cashew nut processing machine is suitable for grading cashew nuts of different sizes, and the machine can distinguish 3-5 grades according to customer requirements.
cashew cooking machine
The cashew nuts have a hard shell. During processing cashews, the cashews need to be steamed and then peeled. Through the cashew nut cooking machine to steam cashew nuts, it will create a space between the cashew nut shell and the kernel. This way can increase the efficiency of cashew nut shelling. The cashew machine manufacturer provides you with electric and gas heating machines. It has different specifications and output.
Cashew shelling machine
In the 200kg/h small cashew nut processing plant, it uses an automatic machine that can crack 10 cashew nuts at a time. In addition, it also has a machine that can shell 220.127.116.11.12 cashews at a time. The automatic cashew nut shelling machine has the characteristics of high shelling efficiency, large output, and complete kernel without scratches.
Shell kernel separator machine
In order to increase production efficiency and reduce manual contact, it generally use a shell and kernel separator to separate cashew nut shells and kernels. The shell and kernel separator uses the principle of different weights of shell and kernel to distinguish the two. It is widely used to distinguish the shell and kernel of nuts after shelling. Therefore, this cashew processing machine usually equips with a nut shelling machine.
The cashew peeling machine uses pneumatic principle to automatically peel the cashew nut. The machine can apply for peeling dried cashew nuts, and the peeling rate is over 98%. It makes up for the defect that the peeling machine can only be applied to wet cashews. It increases the production efficiency of cashews, and reduces the workload of manual operations.
Cashew nut roaster machine（optional)
The roaster machine can use electricity, gas and other heating methods, and it is suitable for roasting all kinds of nuts. In the small cashew nut line, the 200kg/h roaster machine has two barrels to roast cashew nuts. It will not damage cashew nuts when roasting.And the machine is an intelligent control machine, it can adjust the baking temperature and time.
Small cashew nut shelling line advantages
- This cashew nut processing plant is suitable for the production of various sizes’ cashew nuts. The shelling and peeling machine adopt a special blade design, which will not damage the cashew nuts.
- The production line has the characteristics of high production efficiency, small footprint, convenient operation, and maintenance.
- The small cashew nut shelling line not only has one output, but it can also be customized according to the customer’s output.
- The above machine equipment scheme is our regular cashew nut processing machine. If you have different processes to process cashew nuts, we can equip the machine according to your requirements.
Fully automatic cashew processing plant
The fully automatic cashew nut shelling line can realize the fully automatic process from cashew nut feeding to shelling. It has a high degree of automation, and the production efficiency of the production line can reach more than 1000kg/h. The production line covers a large area and has high production efficiency. Therefore, it is mainly suitable for Large cashew processing plant.
Large cashew nut processing machine introduction
The cashew nut processing machines involved in the nut shelling line are roughly the same machines as the small cashew nut line. But all the machines have been replaced with automatic cashew processing machines. For example, the cashew nut shelling machine uses an automatic cashew nut shelling unit. The unit is composed of several automatic cashew nut shelling machines, which greatly increases production efficiency while keeping the shelling rate unchanged.
Automatic cashew nuts shelling line video
Advantages of nuts processing plant
- This automatic cashew nut production line can realize the automatic operation process from raw cashew nut to shelled nuts, with a high degree of automation.
- All machines provided by the cashew machine manufacturer are made of carbon steel and stainless steel, which increases the service life of the machine.
- This production line can not only increase production efficiency, but also reduce personnel contact and reduce pollution.
- All cashew nut processing machines can be operated by intelligent PLC control panel.
